Duplexers for the 210

Even though I have had the cans for quite some time there have been a few technical issues.

Graham managed to find us the Cable we needed. Story at ARRG.US.

Larry, WA3PGL brought a Pass can that helped the receive with the ARR pre-amp in line.

The problem is now the broken "Rexolite" (?) tuning rods.

Here are some photos. Click on any pone for a larger few.

This is the Sinclair F Series Hybred Ring Duplexer purchased in January.
The Harness was rebuilt by N4HHA (not pictured)



Each image has a larger view when clicked

Above is the critical component that has broken acrylic rods.

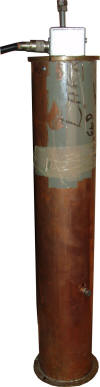

The WA3PGL homebrew Pass Can
